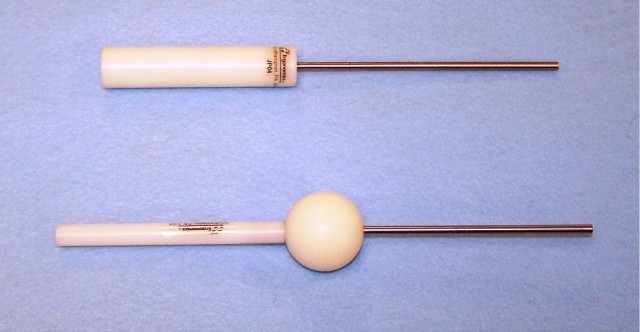

Test Rod Probes
Several models to choose from…
To test to many IEC standards and UL standards.
| Model No. | Applicable Standard | Probe Length | Probe Diameter | Style |
| TWP10 | IEC 60065 IEC 60601 IEC 60529 Table 6 IEC 61032 Figure 4 Test Probe D IEC 62368-1 Figure V.5 IPXXD |
100 mm | 1 mm | B |
| TRP25 | IEC 61032 Figure 3 Test Probe C IEC 60529 Table 6 IEC 62477-1:21012 Figure M.3 (IP3X) IP3X Test Probe C |
100 mm | 2.5 mm | B |
| TWP05 | IEC 61032 Figure 11 Test Probe 17 | 100 mm | 0.5 mm | B |
| HP01-13 | IP2X Test Probe B | 13 mm | 1 mm | B |
| HP01-20 | 20 mm | 1 mm | B | |
| HP03 | IEC 61010-1 Clause 6.2.4 | 100 mm | 3 mm | B |
| HP04 | IEC 61010-1 Clause 6.2.3 | 100 mm | 4 mm | B |
| JP03
DISCONTINUED (see HP03) |
IEC 61010-1 Clause 6.2.4 | 100 mm | 3 mm | A |
| JP04
DISCONTINUED (see HP04) |
IEC 60065 Clause 9.1.3 IEC 61010-1 Clause 6.2.3 IEC 60601 Clause 8.4.2 |
100 mm | 4 mm | A |
(*) Style B Ball is 35mm in diameter. Threaded handle on end for fastening of force gauge.
If the test rod probe is not in the above list, please email us, we can manufacture these probes to any standard or specification.
